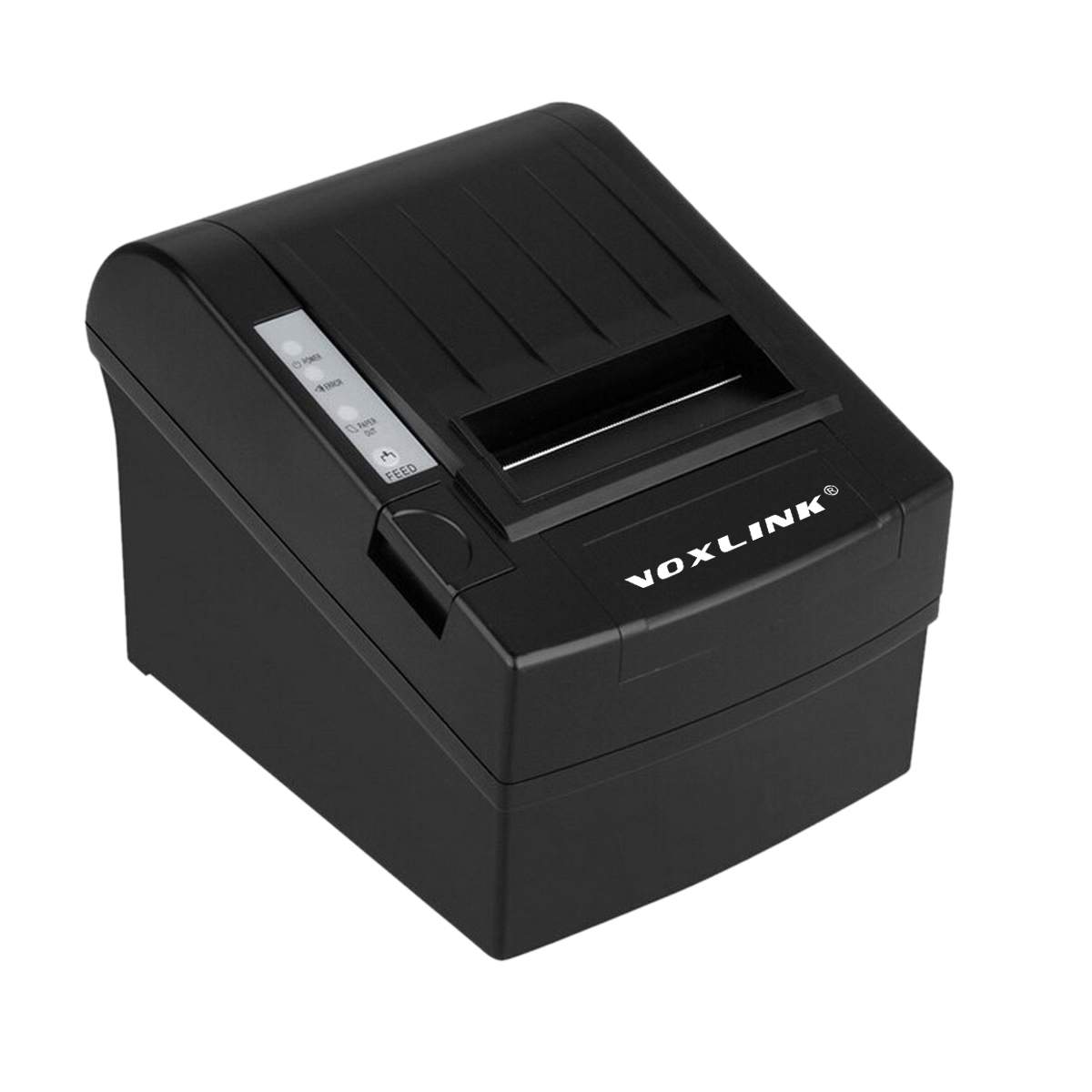

80mm WiFi Thermal Printer Portable Wireless USB High Speed 300M/S Receipt Printer Windows iOS Android Operating System Compatible For POS
- MODEL： DIGI0135
-
-
80mm WiFi Thermal Printer Portable Wireless USB High Speed 300M/S Receipt Printer Windows iOS Android Operating System Compatible For POS
-
1.Product Information
The main features of our Newly 80mm Thermal printers:
-High-quality printing,High-speed and strong stability;
-Interface ( Serial RS232 / RJ45 Ethernet / USB / Bluetooth/ WiFi ) Optional, the system according to different types, different interface is established has been indicated in the title，different interface different price。
-Android device can be supported if connect with USB /Bluetooth/WiFi methods;
-IOS device can be supported if connect with RJ45 Ethernet / Bluetooth/WiFi method;
1.1 Technical Parameters and Features
Printer Method Line Thermal
Print Speed 300mm/sec (80-III type) ;250mm/sec (80-II type)
simplified Chinese 24x24 point. support GB18030 font
Fonts library,support Taiwan and HK traditional(complex font), Korean and，Japanese
576dot/line or 512dot/line ANK Character
Character Size Font A:12*24dot,1.5(W)*3.0(H)mm
Font B:9*17dot,1.1(W)*2.1(H)mm
Simplified/Traditional:24*24dot,3.0(W)*3.0(H)mm
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865
Extended WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/
Character Table OEM852/OEM858/IranII/Latvian/ Arabic/PT151,1251/OEM747 /WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai
Logo / Trademark Download and printing support
Interface Serial / USB / Ethernet / Bluetooth / WIFI( option) Optional, the system according to different types, different interface is established has been indicated in the title，different interface different price。
Print Command：ESC/POS Command

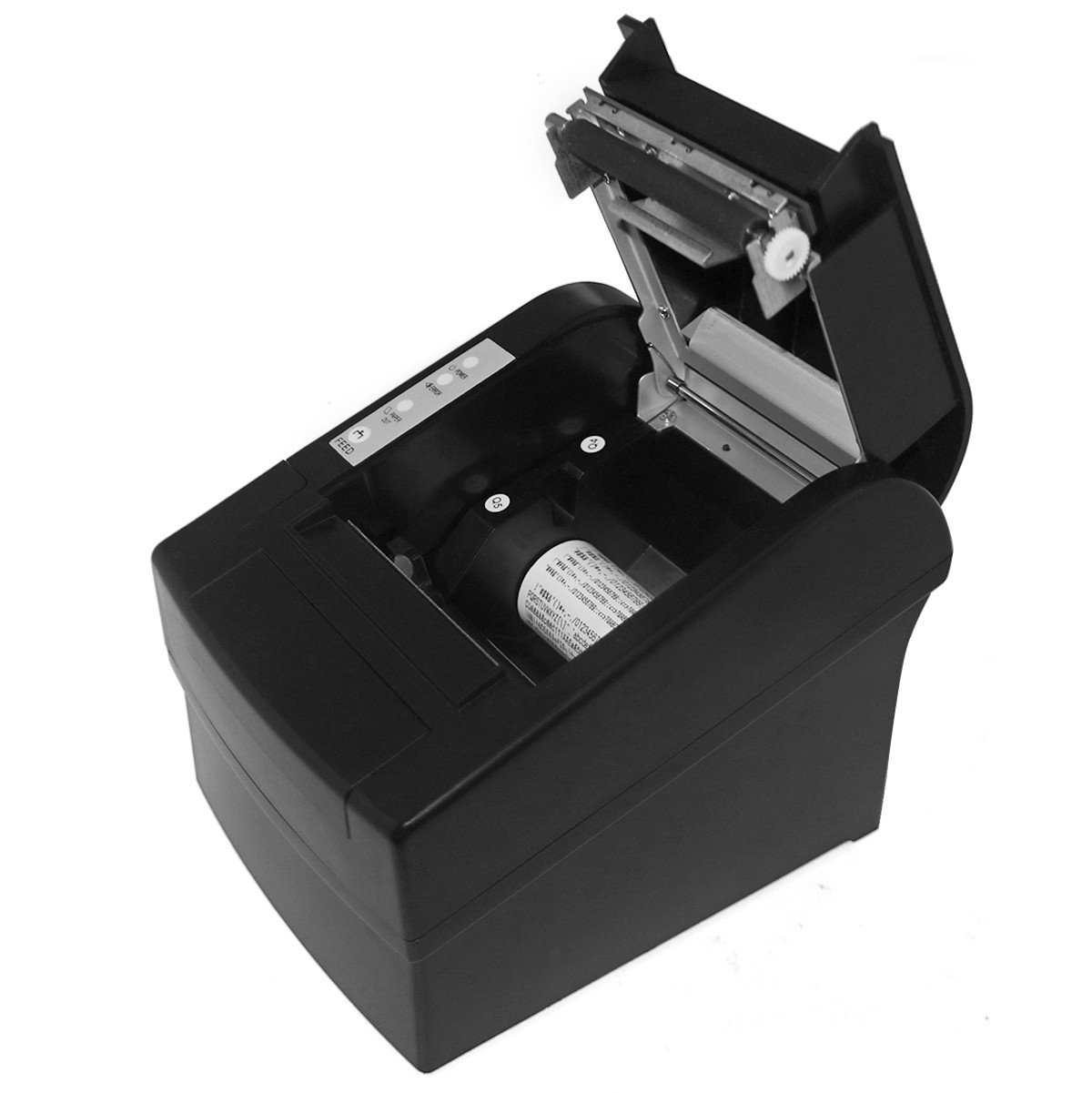

Roll Width：79.5±0.5mm(Print Width72mm)
Roll Diameter 80mm
Paper Thickness 0.06-0.08mm
Power Supply DC24V/2.5A

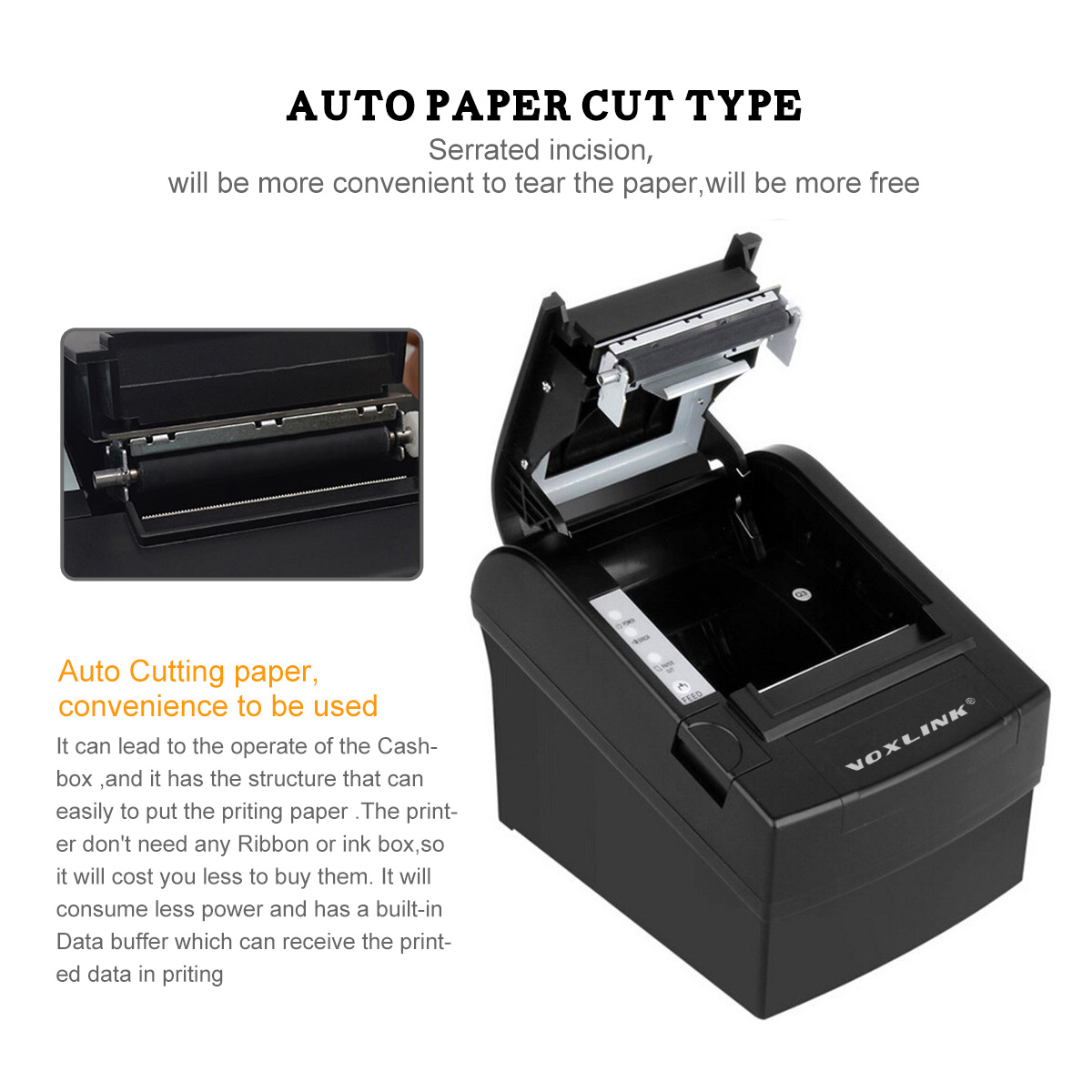

Auto Cutter Full / Partial Cut
Codes type UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF /CODABAR / CODE93 / CODE128 / 2D Barcode QR CODE
Temperature 0-45℃
Contrast Humidity 10-80%

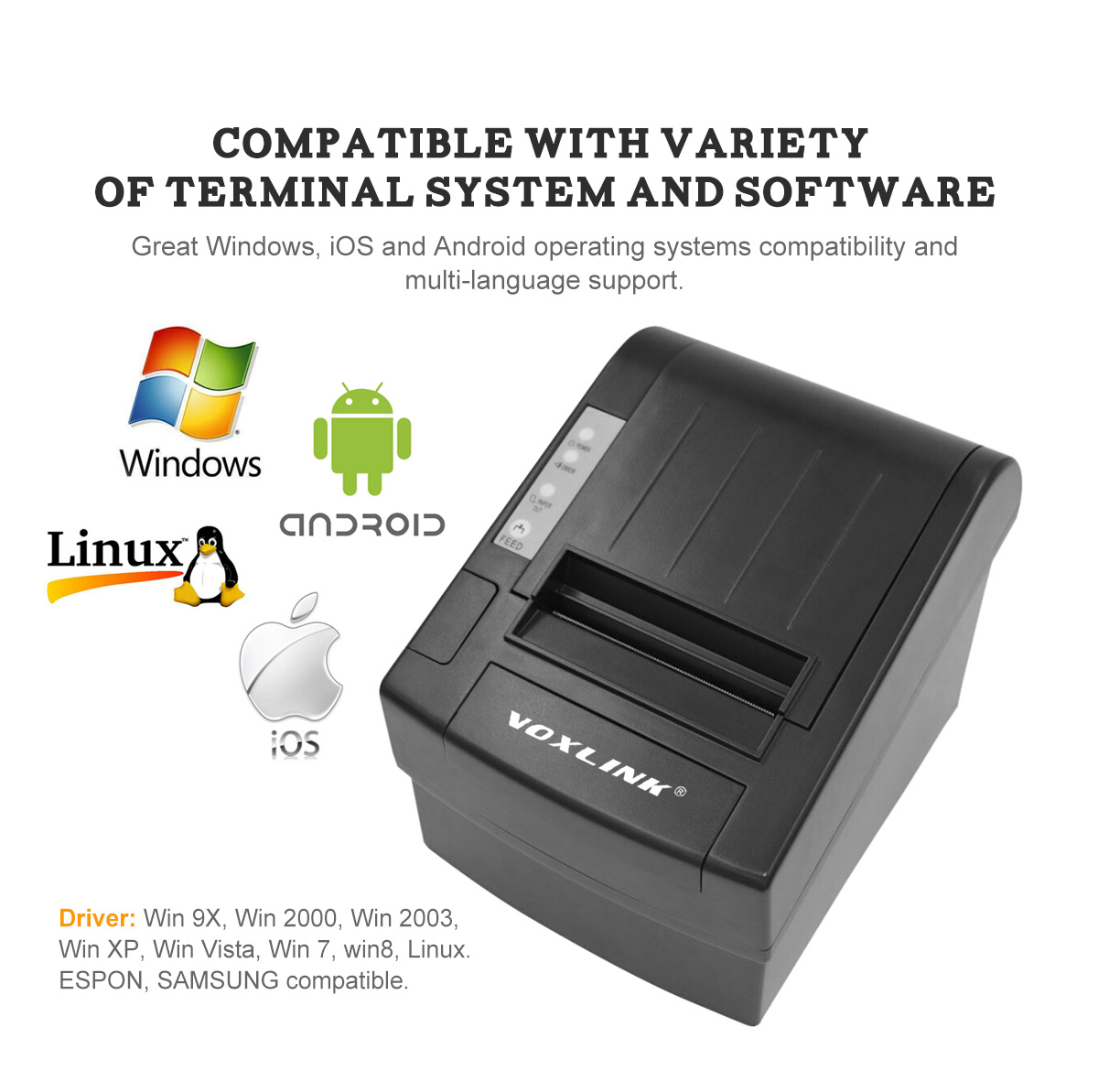

Driver：Win2000/Win2003/Win XP/Win Vista/Win7 /win8/win10/Linux

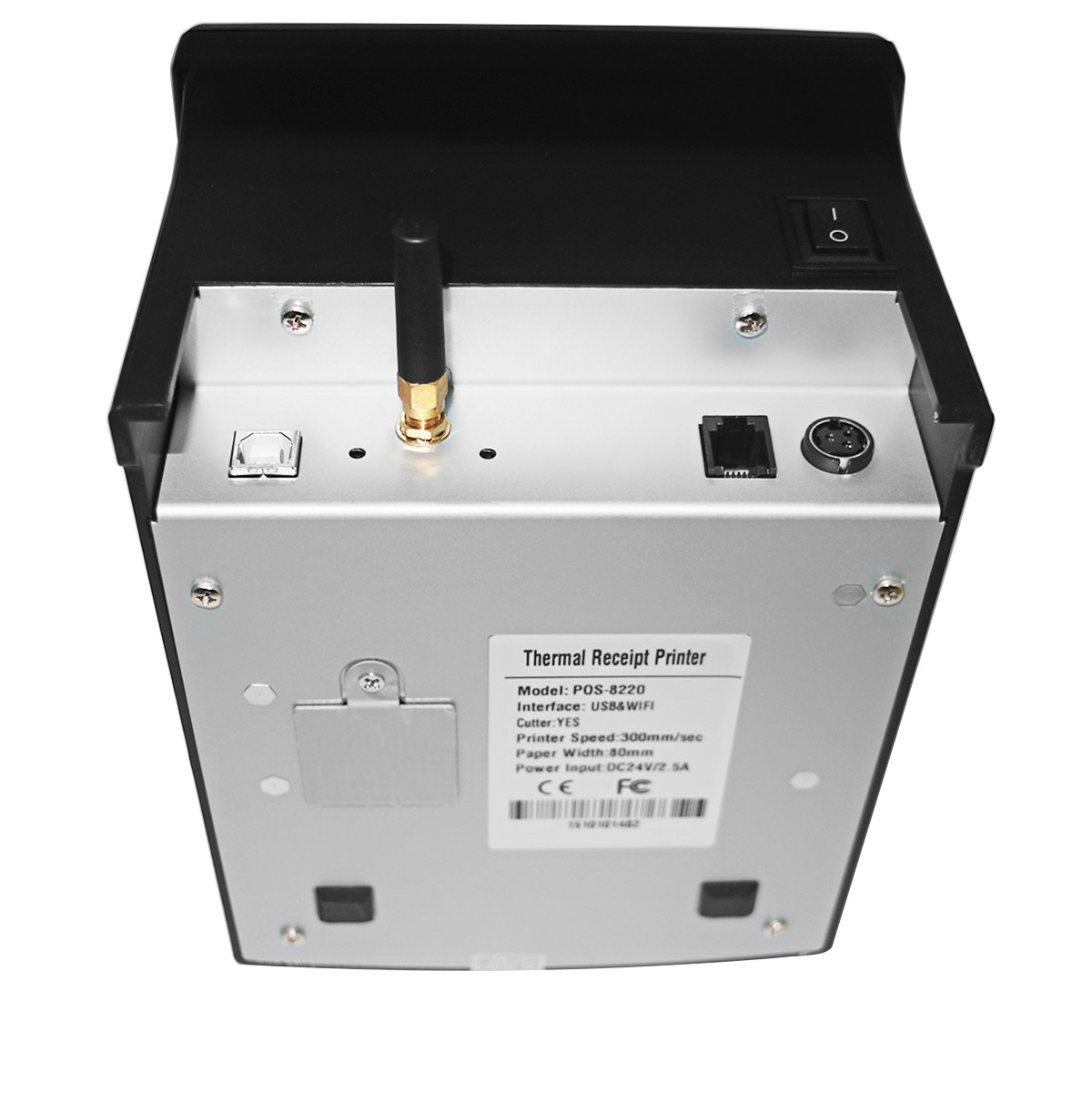

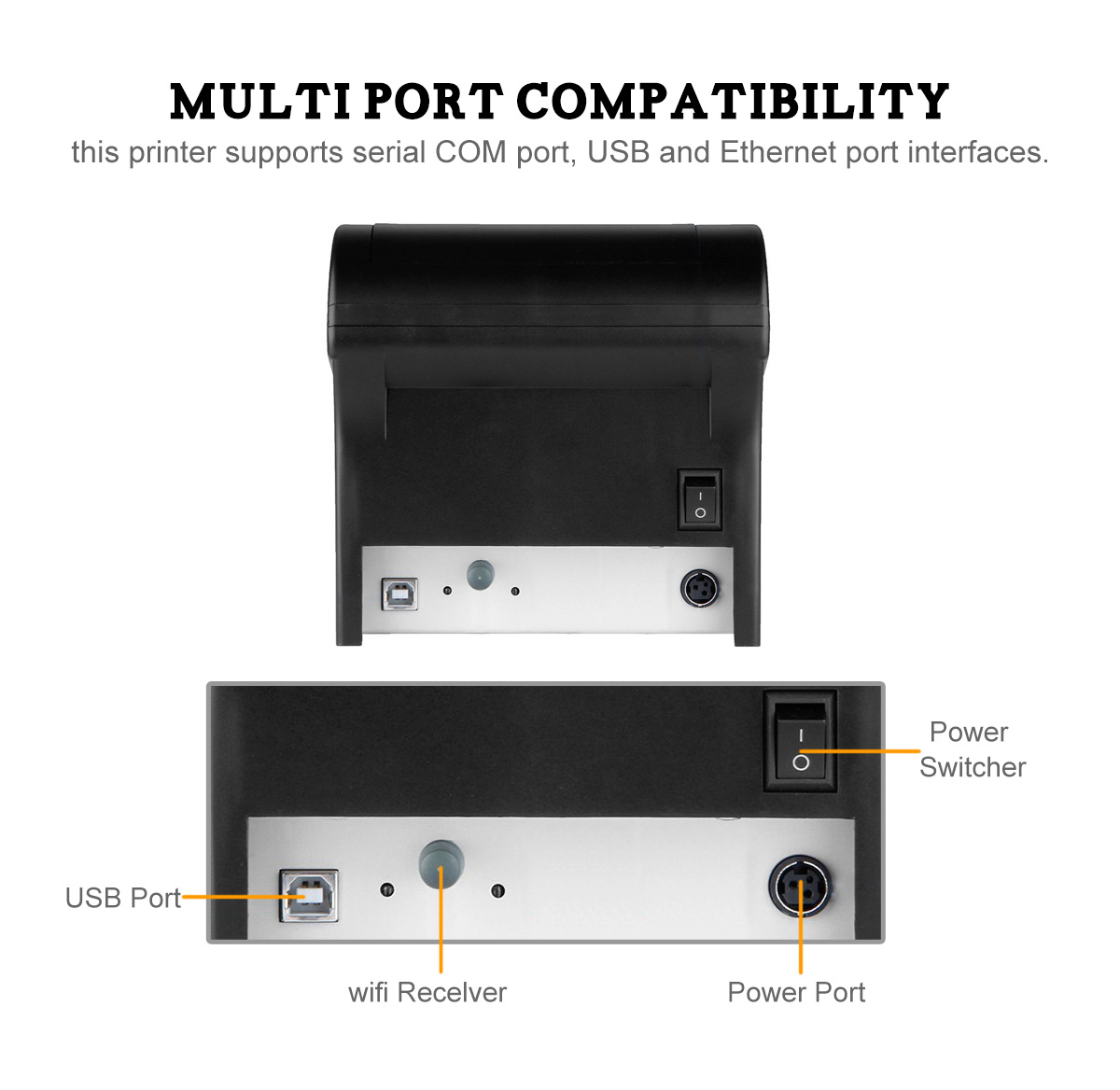

2.Communication Ports
2.1 Universal Serial Bus（USB Port）
Connect the printer with the standard usb cable(usb device types are automatically) , once printer is connected with the PC, install the driver , then choose the corresponding port accordingly.
2.2 RJ45 Ethernet Port (10M/100M) (suitable for 80-III type)
With this port, we can use the network cable and connect the computer directly, communication and the port number is 9100;
2.3 RS232 Serial Port
RS-232 is developed according to the EIA standard asynchronous transmission, the specification as following:
Data transmission: serial interface
Synchronization: asynchronous
Signal Level: +5.4V Serial RS232 Level,logic 1:-5.4v, logic 0: +5.4V
Hardware Flow Control: Hardware
Baud Rate:9600bps to 115200bps( Optional )
Data Length: 8 Bits
1bit Stop Bit: 1Bit
Parity: None
The wiring method of the serial interface printer following the standard rules of Serial Interface EIA standard. Consumer can get the current default baud rate from “ Print Test Page ”and also can adjust the baud rate via DIP switch ( DIP switch is on the bottom of the printer )
3.Basic Function Operation

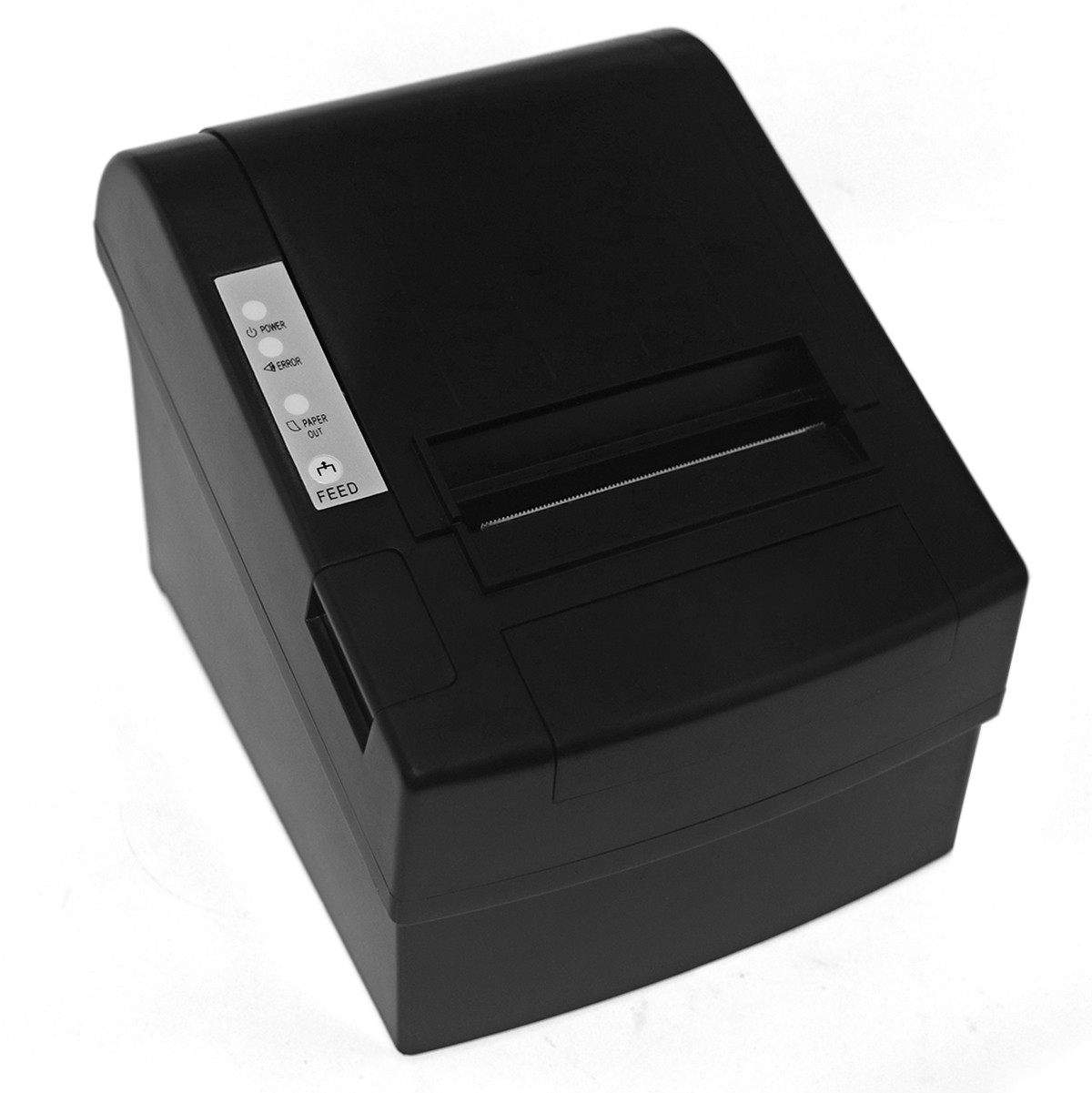

3.1 Indicator Light & Printer Status
The printer has 3 Led Indicators( Power / Error and Paper Out ),Power indicator will lights on once power is plugged in. And Error Led will lights on when any error arose ( Paper Out / Temperature is too high / mal-position of the carriage unit on the print head ); We can press the “FEED” button to test the paper feeding function if the power indicator looks well.
3.2 Printer Operation
Switch on: Ensure the adapter properly connected with the printer, press the switch on the “1”position, printer turns on.
Switch off: Press the switch on the other side “O”.
Paper Feeding: Press “ FEED” button when powers on, paper will keep running & stop to run when loosen this button.
Self Printing Test : Switch off the printer then press “FEED” button and do not release. Press the “POWER” button at the same time till the “ PAPER OUT” indicator on, release the button then we can read the current setting from the test page.
Hexadecimal printing:Power off the printer, press “FEED” button & do not release, press “POWER” button at the same time until the “ PAPER OUT” indicator on, release the “FEED” button about 3 seconds after the “ PAPER OUT” indicator off , then the printer run into Hexadecimal printing model. The way to quit Hexadecimal printing model is just restart the printer.
Cautions:
1) Please apply the power adapter to a stable voltage (110-220V ), please
do not use other devices on the same power outlet to avoid voltage fluctuation.
2) Install the printer on a flat and stable surface to avoid printer suffered from any vibration and shocks.
3) If water or other liquid spills into the printer, unplug the power cord immediately and contact your dealer or service center for advice.
4) Disconnect the power cord if the printer is idle for a long time.
5) Please ensure the switch button is “off”before you plug the power cord.
6) The printer should only be disassembled or repaired by a technician.

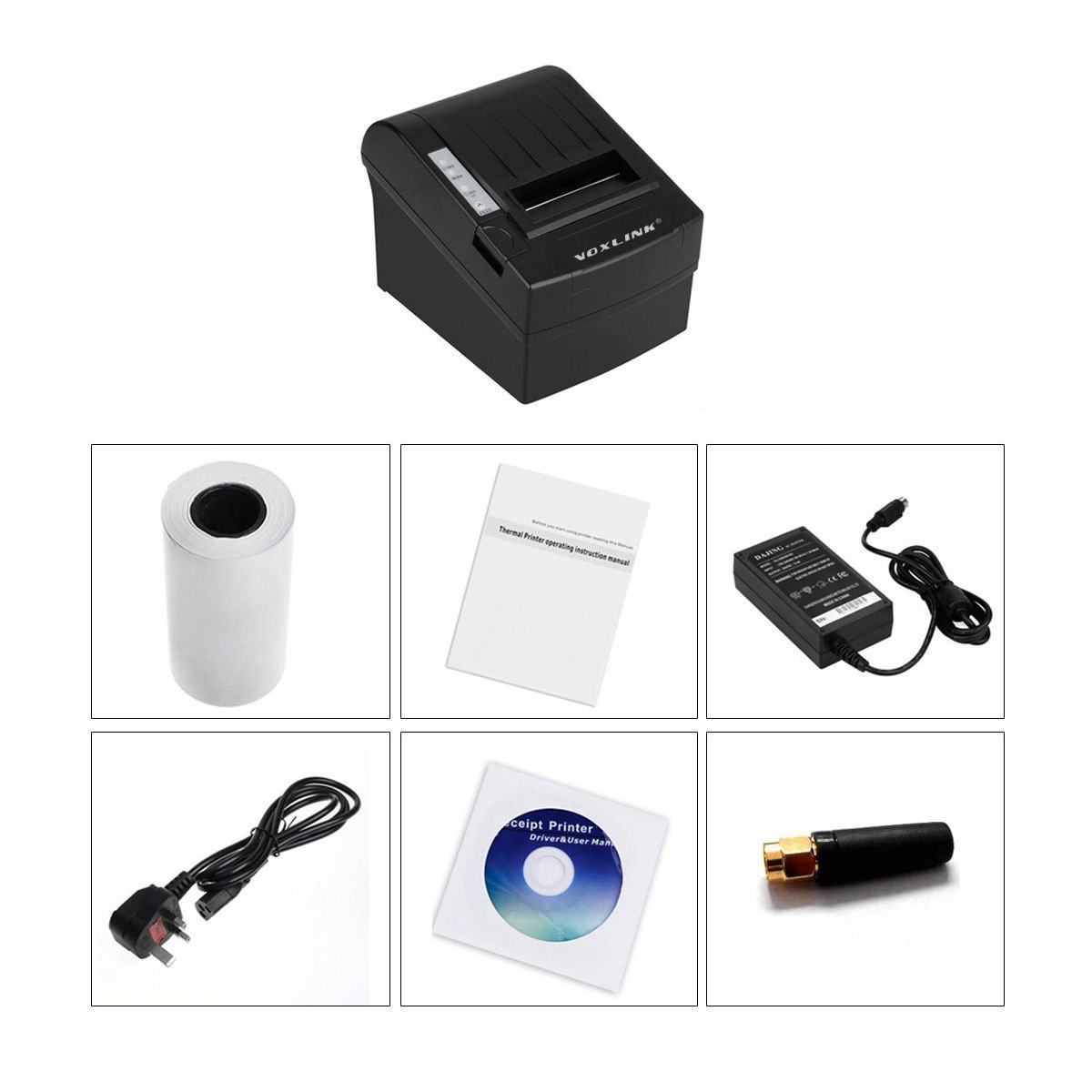

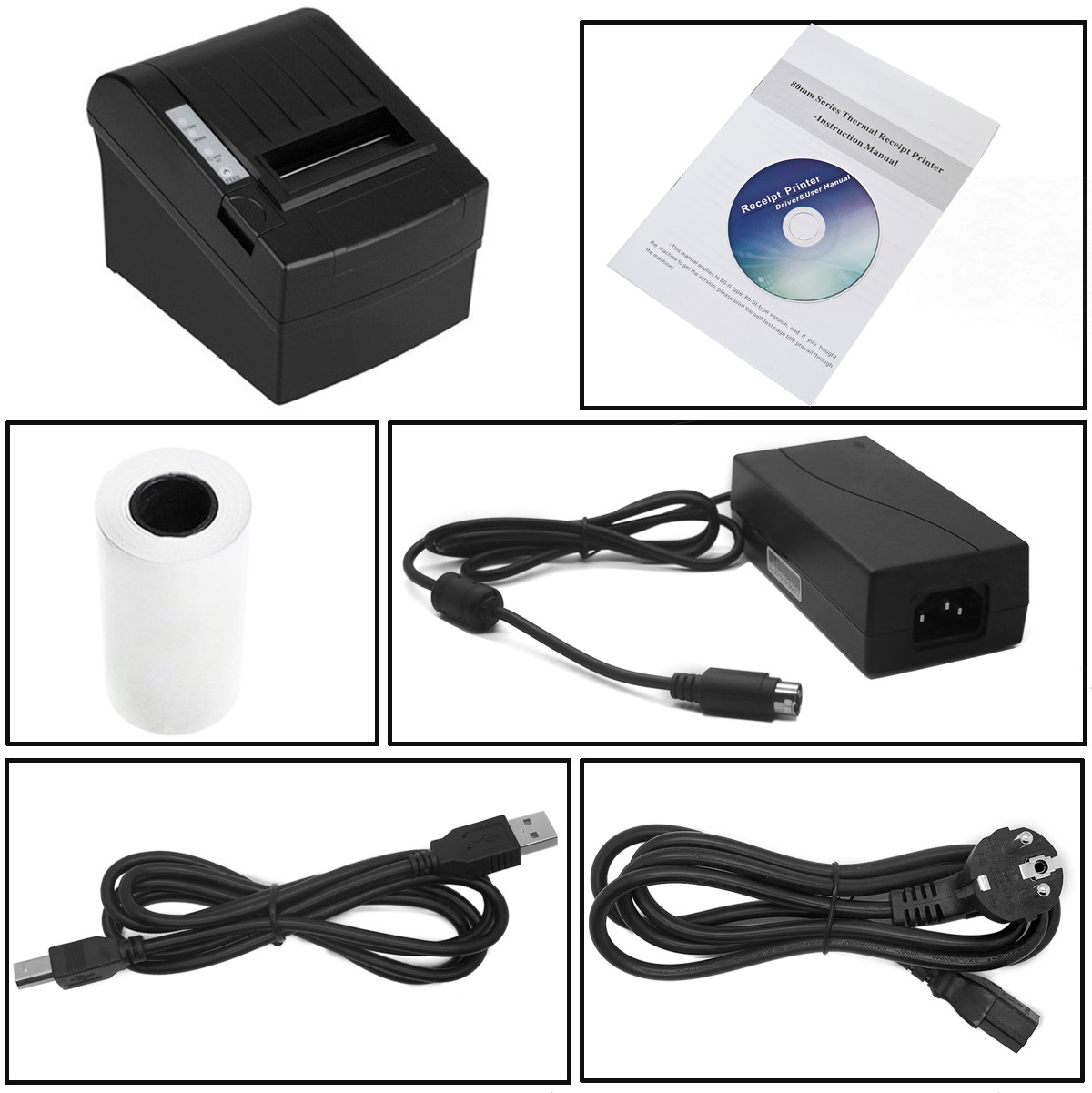

7) Please strictly follow the recommended use tips of this manual.Package includes:
WiFi printer, 1pc

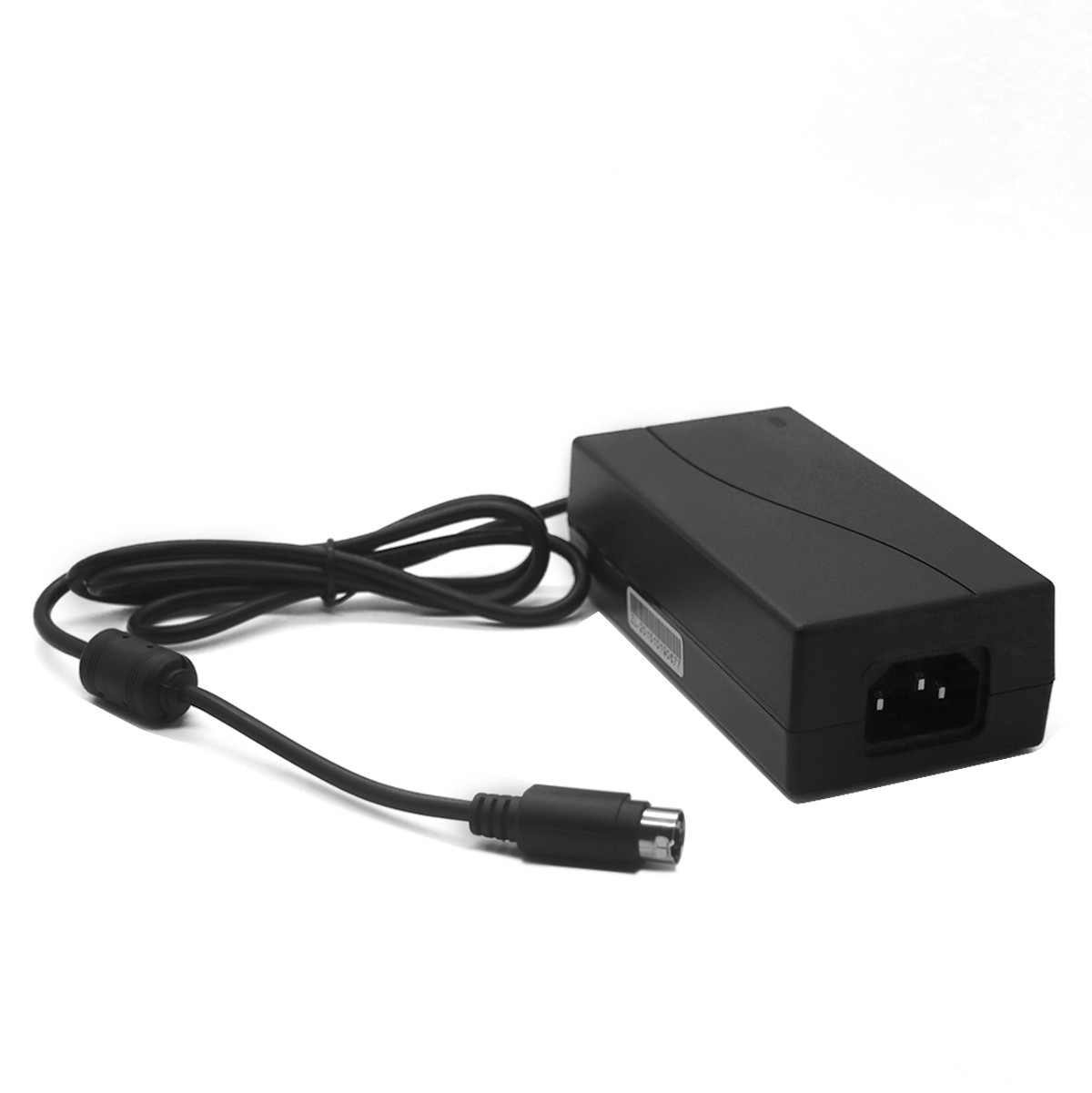

Power supply adapter, 1pc
USB data cable, 1pc
Driver CD, 1pc
Paper roll, 1pc
-
-
